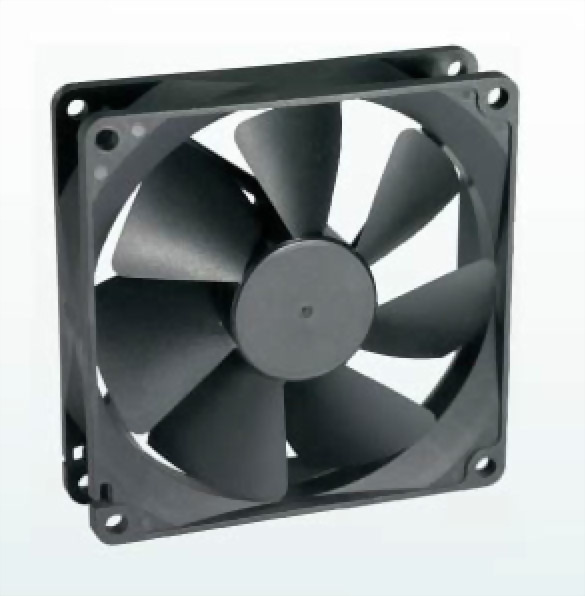

DC 92X92X25mm

Airflow: 45.8-73.4 CFM
Static Pressure: 3.1~7.2 mm-H20
Blade / Housing:
Plastic Material UL94V-0 P.B.T.
Lead Wire: UL1007#24AWG
Weight: 100.0 g

Specifications Specifications are subject to change without notice
Model No. Bearing Rated Voltage /VCD Operating Rated Voltage/VCD Speed/RPM Max.Airflow/CFM Max.Static Pressure/mm-H 2O Current/mA Power Consumption/W Life at 40oC L10/Hour P-Q Curve Noise Level/dB(A)
GW922512LS S 12 7~13.2 2400 45.8 3.1 150 1.80 30000 5 32.5
GW802512MS S 12 7~13.2 2800 53.5 4.3 220 2.64 30000 4 38.0
GW802512HS S 12 7~13.2 3100 58.6 5.2 260 3.12 25000 3 40.0
GW802512ES S 12 7~13.2 3500 67.3 5.9 340 4.08 20000 2 43.0
GW802512ES 2B 12 7~13.2 3800 73.4 7.3 470 5.64 20000 1 45.5
GW802512LB 2B 12 7~13.2 2400 45.8 3.1 150 1.80 80000 5 32.5
GW802512MB 2B 12 7~13.2 2800 53.3 4.3 220 2.64 80000 4 38.0
GW802512HB 2B 12 7~13.2 3100 58.6 5.2 260 3.12 75000 3 40.0
GW802512EB 2B 12 7~13.2 3500 67.3 5.9 340 4.08 65000 2 43.0
GW802512EB 2B 12 7~13.2 3800 73.4 7.2 470 5.64 65000 1 45.5
GW802512LB 2B 24 12~26.4 2400 45.8 3.1 90 2.16 80000 5 32.5
GW802512MB 2B 24 12~26.4 2800 53.5 4.3 120 2.88 80000 4 38.0
GW802512HB 2B 24 12~26.4 3100 58.6 5.2 160 3.84 75000 3 40.0
GW802512EB 2B 24 12~26.4 3500 67.3 5.9 200 4.80 65000 2 43.0
GW802512EB 2B 24 12~26.4 3800 73.4 7.3 270 6.48 65000 1 45.5
GW802512LB 2B 48 24~56.0 2400 45.8 3.1 55 2.64 80000 5 32.5
GW802512MB 2B 48 24~56.0 2800 53.5 4.3 80 3.84 80000 4 38.0
GW802512HB 2B 48 24~56.0 3100 58.6 5.2 100 3.80 75000 3 40.0
