Global WIN IP68 Arrival !!!
Global WIN IP68 Arrival !!!
Waterproof,Dustproof,Salt & Fog proof
|
1

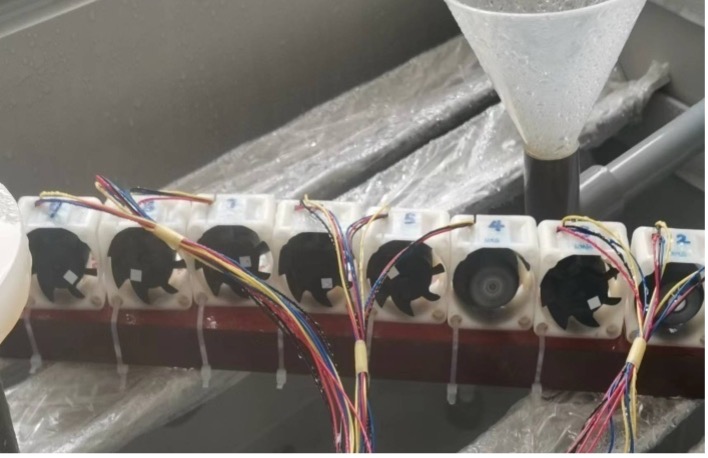

(Testing Photo) |
Now more and more outdoor applications or devices installed in critical environment require fan to achieve thermal performance, such as water proof, dust proof, salt & fog proof…etc. IP52/IP54/IP56/IP58/IP68 are available in Global WIN. Now we are concentrating on automotive market standards IATF16949. |
What’s the IP ratings ?
|
The first two characters, I and P, stands for Ingress Protection. The first number indicates the level of protection against dust, the higher number, the better dustproof. |
1 |
| Digit | First digit(Solid protection description) | |
|---|---|---|
| 0 | No protecion | |
| 1 | Protection against solid particle of diameter larger than 50mm | |
| 2 | Protection against solid particle of diameter larger than 12.5mm | |
| 3 | Protection against solid particle of diameter larger than 2.5mm | |
| 4 | Protection against solid particle of diameter larger than 1mm |
|
1
1 |
The second number is the level of protection against water or liquid,with a maximum rating 9. The higher number, the better water proof |
| Digit | Second digit(Liquid or moisture protection description) | ||
|---|---|---|---|
| 0 | No protection | ||
| 1 | Protection against vertically falling dripping water(equivalent to 1mm rainfall per minute) | ||
| 2 | Protection against vertically falling dripping water(equivalent to 3mm rainfall per minute) when the fan is tilted at an angle of 15° from its normal position | ||
| 3 | Protection against spraying water from spray nozzle at any angle | ||
| 4 | Protection against water splashing at any angle |
IP rating is a standard for various more critical applications, the higher rating indicates the better protection against dust particles cause fan stuck, unexpected corrosion and high humidity. In other words, the fan rotates much longer life span even under the water & dust environment than normal fan does. We have injections to isolate the water and dust depends on IP rating, and clinets’ application, to have the electrical devide work properly.
