• Intel LGA 1700 RCF94LPR-C7

Intel LGA 1700 RCF94LPR-C7

PART NO. : RCF94LPR-C7 APPROVAL NO. :
Q'TY : PCS

Part Number :

RCF94LPR-C5

Fan ( Per Fan )

GW922512MS

Sensor Temperature

Operation Voltage

DC 10.8 ~ 13.2V

Rated Voltage

DC12 V

Input Current

0.25 A MAX.

Input Power

3.00 W MAX.

Bearing System

ELR

Fan Speed(RPM)

2500 ± 15 % RPM

Max. Air Delivery(CFM)

43.16 ± 15 % CFM

Noise Level

31.82 ± 2dB(A)

Fan Safety

UL Approved

Fan with RPM signal output

YES

Heatsink

Dimension

90*26.3 mm

Material

Aluminum(6063)

CLIP

Material

Steel(K7)

Thermal Interface

High thermal conductive interface

Material

GW101

Connector

CKM2510 4P(PWM) ( or equal parts )

Wire Length

220±15 mm

Total Weight

255 g

* ELR = Elastic Lubricant Retainer

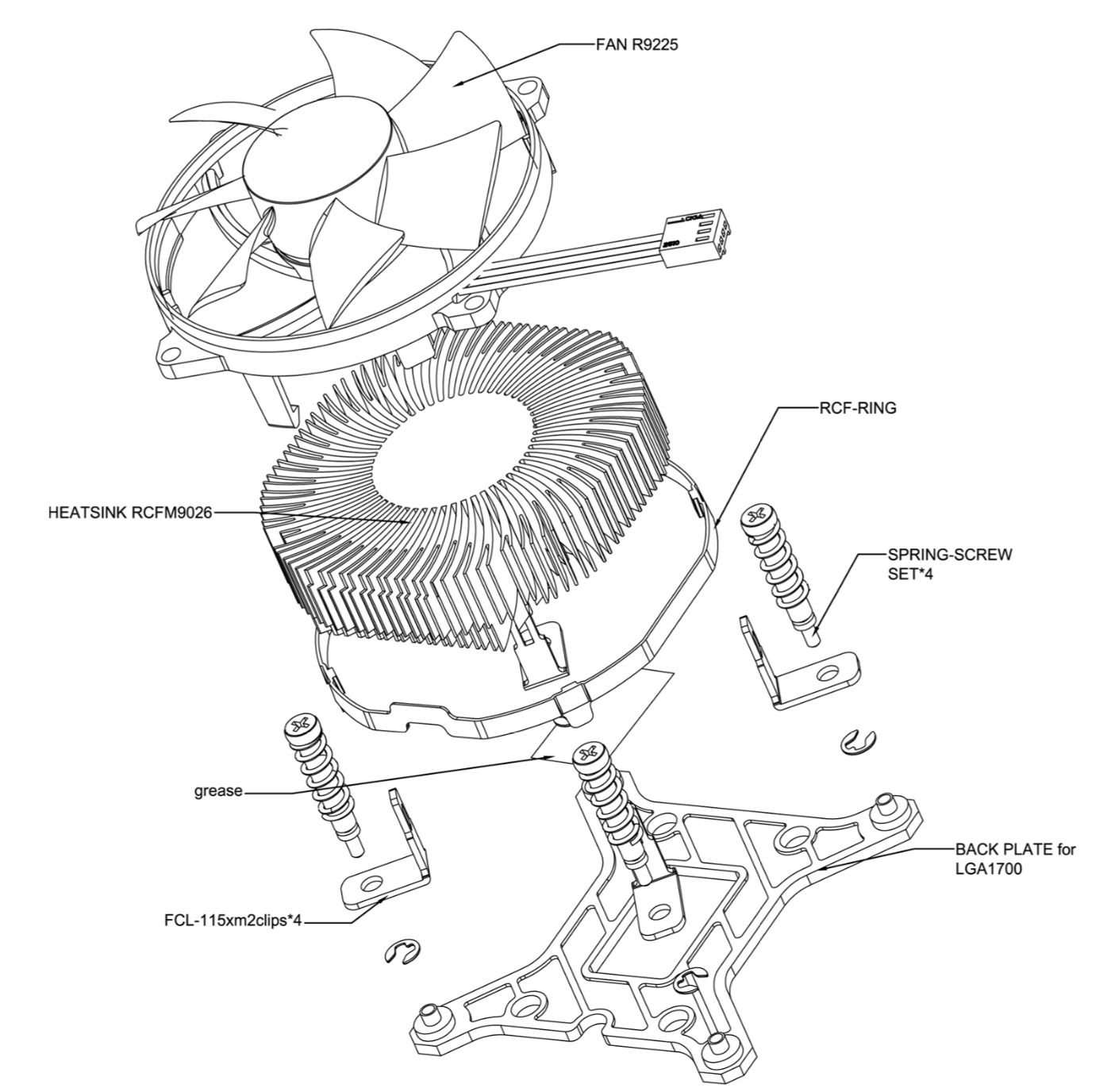

EXPLODER

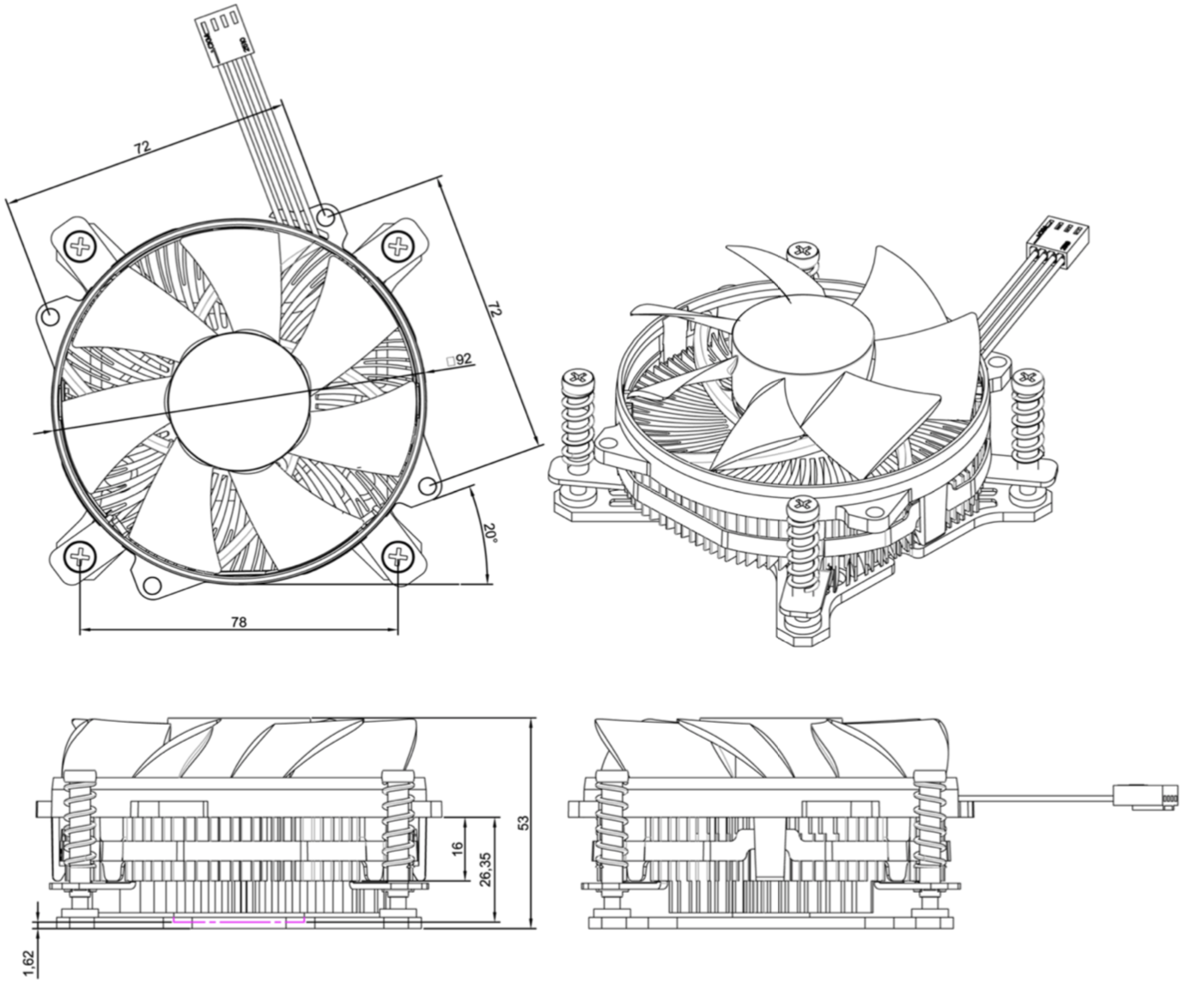

DIMENSION DRAWING


 GENERAL DIMENSION TOLERANCES ( UNIT : mm )

0

---

20

± 0.2

21

---

50

± 0.5

51

---

OVER

± 1.0

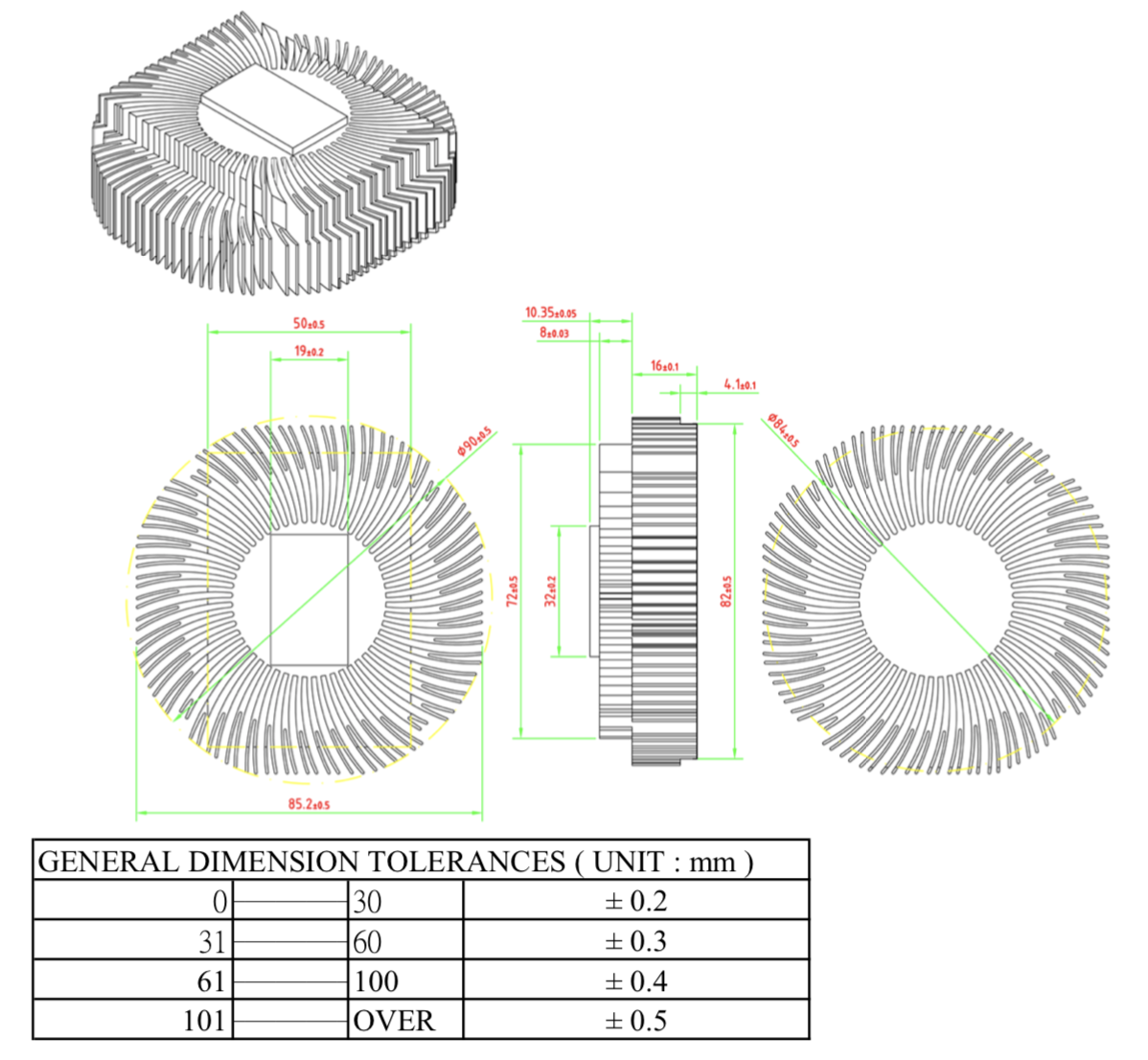

HEAT SINK

Material : Aluminum Alloy 6063T5

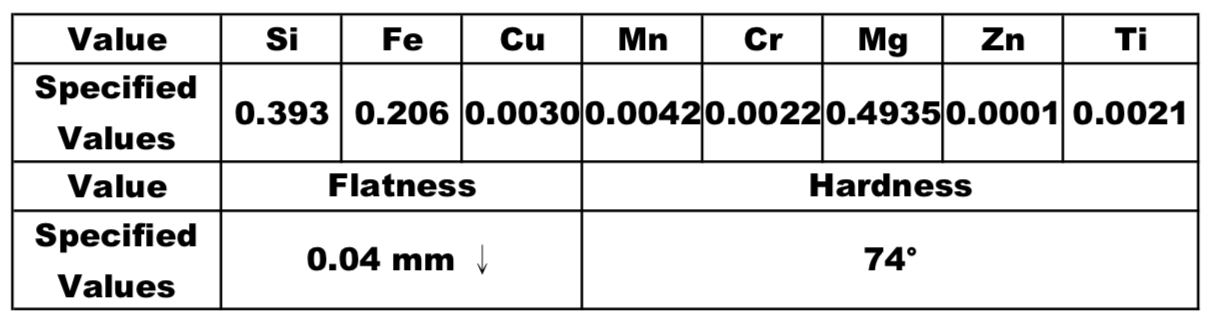

Chemistry Ingredient & Temper Designation : Aluminum(6063)

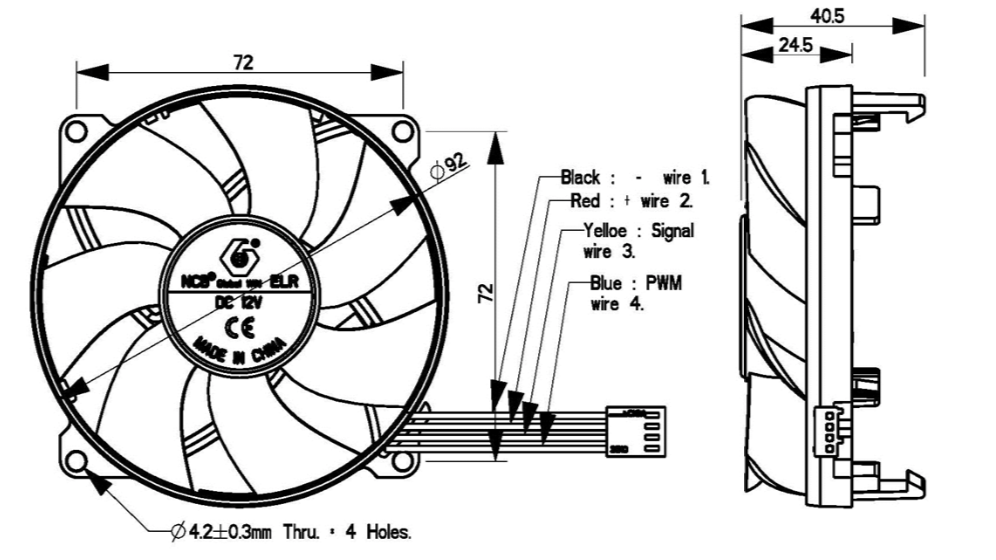

FAN

 Specification

 ELR

 Dimensions

 92.5 *92.5 * 25 mm

 Rated Speed

 2500 ± 15 % RPM

 Air Flow

 43.16 ± 15 % CFM

 Noise Level

 31.82 ± 2dB(A)

 Rated Voltage

 DC12 V

 Operating Voltage Range

 DC 10.2 ~ 13.8 V

 Housing/ Fan Blade

 UL: 94V-0 Rating+Fibre Glass

 Max Air-Pressure

 2.74 ± 15% mmH2O

 Input Current

 0.25 A MAX.

 Input Power

 3.00 W MAX.

 Direction of Rotation

 Clockwise,Air Discharged

 Life Expectancy(L10 at 45OC)

 60,000 Hours normally continuous operating

 Lead wire

   "+ POSITIVE-----RED"
 UL 2468 #26AEG  "- NEGATIVE-----BLACK"

   "SENSOR OUTPUT (FG)---YELLOW(3rd WIRE) "

   "SENSOR OUTPUT(PWM)---BLUE(4th WIRE) "

 Operating Temperature

 -10 TO +70OC

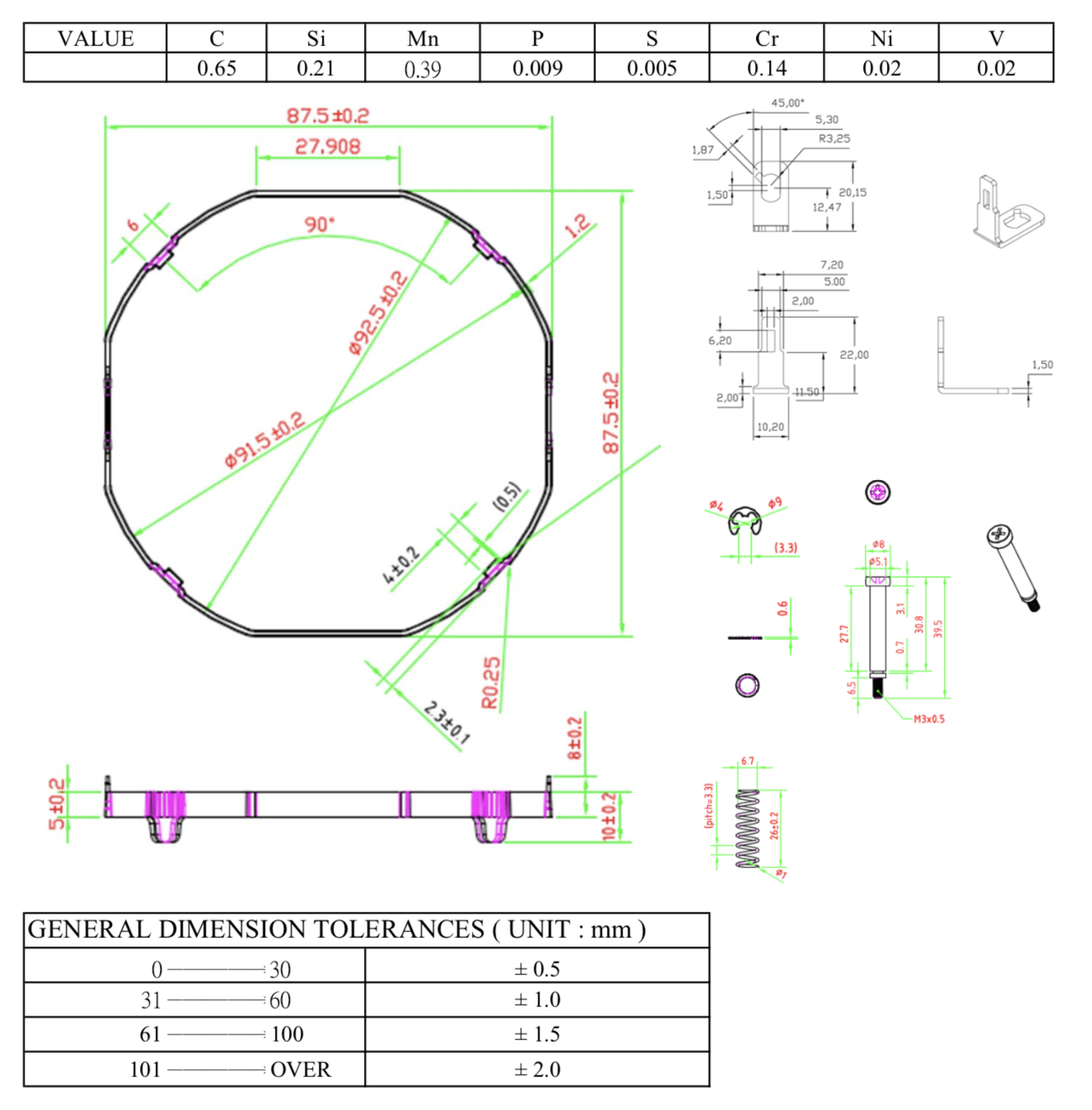

CLIP


Material : Steel & Plastic

Physical Characteristics


Itam

Finish

Hardness

Thickness

Stainless

Hard Finished

163~178O

0.8 ± 0.02 mm



THERMAL PASTE

Model Type : SILICONE HEAT SINK PAST GW101

COLOR

WHITE

BULK PENETRATION

210 ~ 260

SPECIFIC GRAVITY

2.3 at 25
