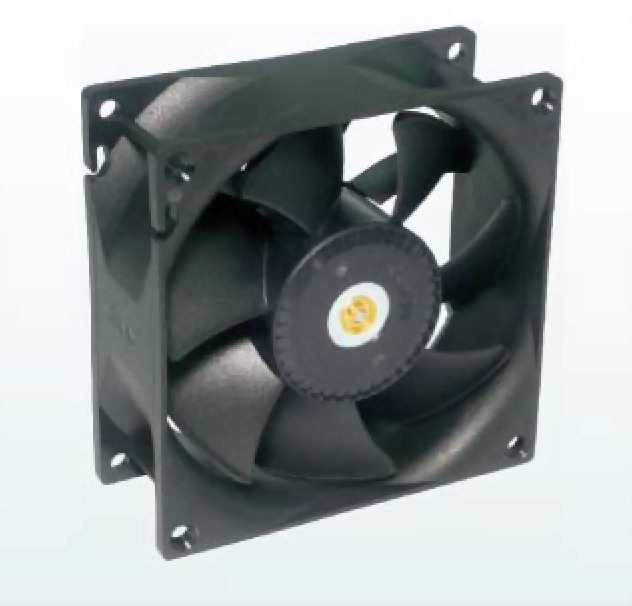

• DC 92X92X38mm

DC 92X92X38mm

Airflow: 97.1-196.5 CFM
Static Pressure: 15.2~52.4 mm-H20
Blade I Housing:
Plastic Material UL94V-0 P.B.T.
Lead Wire: UL1007#24AWG
Weight: 201.5 g

Specifications Specifications are subject to change without notice
Model No. Bearing Rated Voltage /VCD Operating Rated Voltage/VCD Speed/RPM Max.Airflow/CFM Max.Static Pressure/mm-H 2O CurrentmA Power Consumption/W Life at 40oC L10/Hour P-Q Curve Noise Level/dB(A)
GW923812LB-S 2B 12 7~13.2 5000 97.1 15.2 450 5.40 60000 5 50.9
GW923812MB-S 2B 12 7~13.2 6000 118.0 23.4 750 9.00 60000 4 54.3
GW923812HB-S 2B 12 7~13.2 7000 132.0 28.1 1150 13.80 60000 3 57.5
GW923812EB-S 2B 12 7~13.2 8500 162.3 38.2 1900 22.80 60000 2 61.7
GW923812EB-S 2B 12 7~13.2 10000 196.5 52.4 3200 38.40 60000 1 66.3
GW923812LB-S 2B 24 11~28.0 5000 97.1 15.2 230 5.52 60000 5 50.9
GW923812MB-S 2B 24 11~28.0 6000 118.0 23.4 380 9.12 60000 4 54.3
GW923812HB-S 2B 24 11~28.0 7000 132.2 28.1 580 13.92 60000 3 57.5
GW923812EB-S 2B 24 11~28.0 8500 162.3 38.2 1000 24.00 60000 2 61.7
GW923812EB-S 2B 24 11~28.0 10000 196.5 52.4 1600 38.4 60000 1 66.3
GW923812LB-S 2B 48 36~56.0 5000 97.1 15.2 120 5.76 60000 5 50.9
GW923812MB-S 2B 48 36~56.0 6000 118.0 23.4 190 9.12 60000 4 54.3
GW923812HB-S 2B 48 36~56.0 7000 132.2 28.1 290 13.92 60000 3 57.5
GW923812EB-S 2B 48 36~56.0 8500 162.3 38.2 500 24.00 60000 2 61.7
GW923812EB-S 2B 48 36~56.0 10000 196.5 52.4 800 38.40 60000 1 66.3
