  • DC Fan 80X80X32mm

DC Fan 80X80X32mm

• Airflow: 48.6'80.5CFM
Static Pressure: 13.5-22.3 mm-H2O
Blade I Housing:
Plastic Material UL94V-0 P.B.T.
Lead Wire: UL1007 #24 AWG
Weight: 148.2 g

Specifications Specifications are subject to change without notice

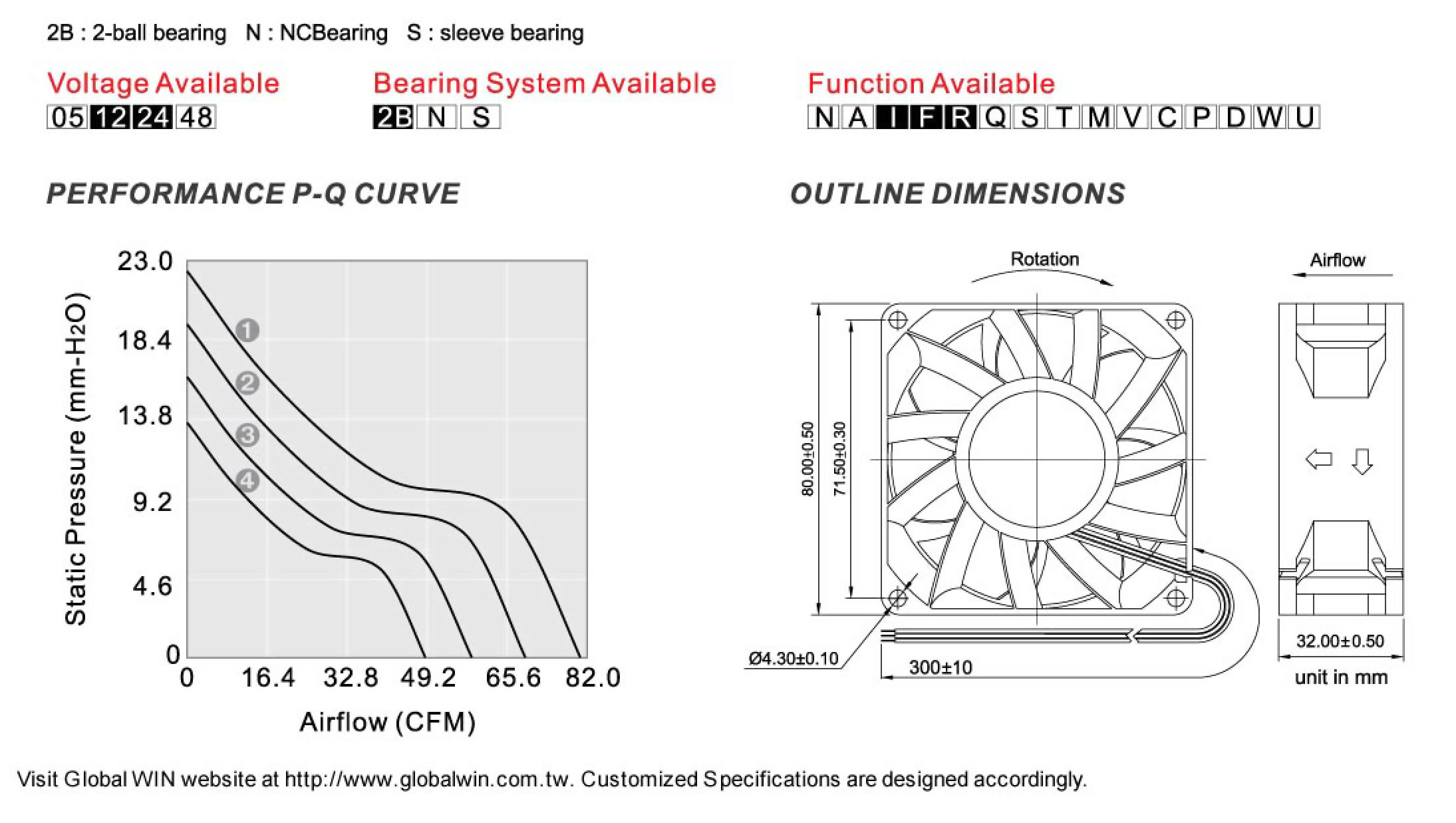

Model No. Bearing Rated Voltage /VCD Operating Rated Voltage/VCD Speed/RPM Max.Airflow/CFM Max.Static Pressure/mm-H 2O Current/mA Power Consumption/W Life at 40oC L10/Hour P-Q Curve Noise Level/dB(A)
GW803212LB-P 2B 12 7~13.2 3500 48.6 13.5 240 2.88 80000 4 45.0
GW803212MB-P 2B 12 7~13.2 4200 58.3 16.2 350 4.20 80000 3 49.0
GW803212HB-P 2B 12 7~13.2 5000 69.4 19.2 650 7.80 75000 2 53.0
GW803212EB-P 2B 12 7~13.2 5800 80.5 22.3 830 9.96 65000 1 56.0
GW803212LB-P 2B 24 12~26.4 3500 48.6 13.5 150 3.60 80000 4 45.0
GW803212MB-P 2B 24 12~26.4 4200 58.3 16.2 220 5.28 80000 3 49.0
GW803212HB-P 2B 24 12~26.4 5000 69.4 19.2 330 7.92 75000 2 53.0
GW803212EB-P 2B 24 12~26.4 5800 80.5 22.3 450 10.80 65000 1 56.0
