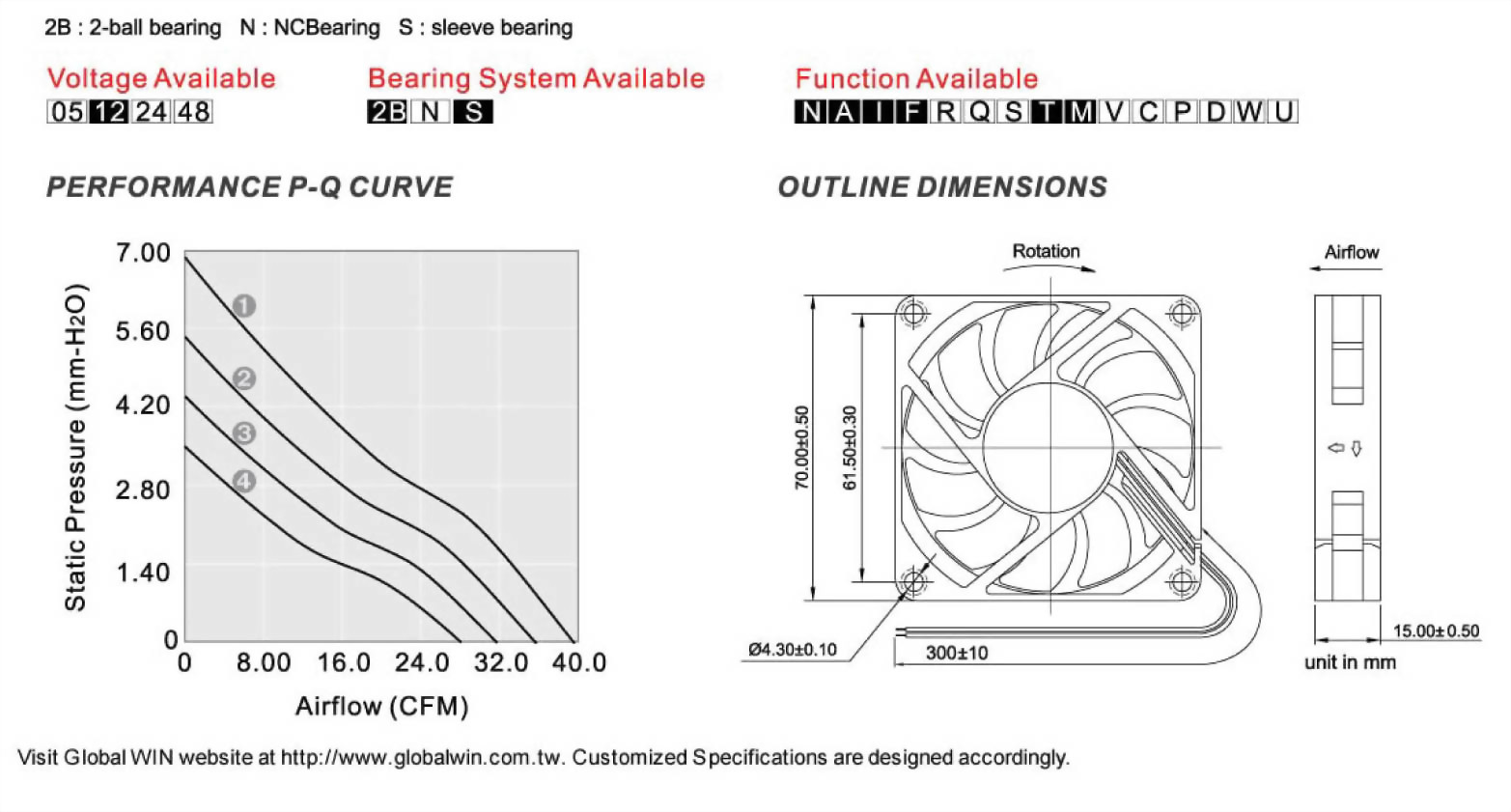

• DC 70X70X15mm

DC 70X70X15mm

Airflow: 27.9-39.5 CFM
Static Pressure: 3.5~6.8 mm-H2O
Blade / Housing:
Plastic Material UL 94V-0 P.B.T.
Lead Wire: UL1007 #26AWG
Weight: 54.0 g

Specifications Specifications are subject to change without notice
Model No. Bearing Rated Voltage /VCD Operating Rated Voltage/VCD Speed/RPM Max.Airflow/CFM Max.Static Pressure/mm-H 2O Current/mA Power Consumption/W Life at 40oC L10/Hour P-Q Curve Noise Level/dB(A)
GW701512LB 2B 12 7~13.2 3800 27.9 3.5 130 1.56 80000 4 34.0
GW701512MB 2B 12 7~13.2 4300 31.6 4.4 190 2.28 80000 3 39.0
GW701512HB 2B 12 7~13.2 4800 35.3 5.4 260 3.12 75000 2 41.5
GW701512EB 2B 12 7~13.2 5500 39.5 6.8 400 4.80 65000 1 45.5
GW701512LS S 12 7~13.2 3800 27.9 3.5 160 1.86 30000 4 34.0
GW701512MS S 12 7~13.2 4300 31.6 4.4 220 2.64 30000 3 39.0
GW701512HS S 12 7~13.2 4800 35.3 5.4 280 3.36 25000 2 41.5
