DC Fan-Global WIN

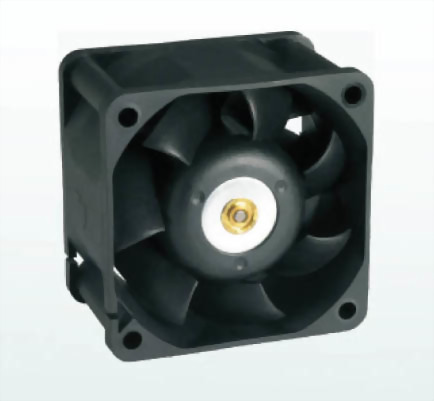

DC Fan 60X60X38mm

Airflow: 26.7-45.5 CFM
Static Pressure: 8.1-22.9 mm-H2O
Blade / Housing:
Plastic Material UL 94V-0 P.B.T.
Lead Wire: UL1007#24AWG
Weight: 115.6g

Q'ty :

Specifications Specifications are subject to change without notice

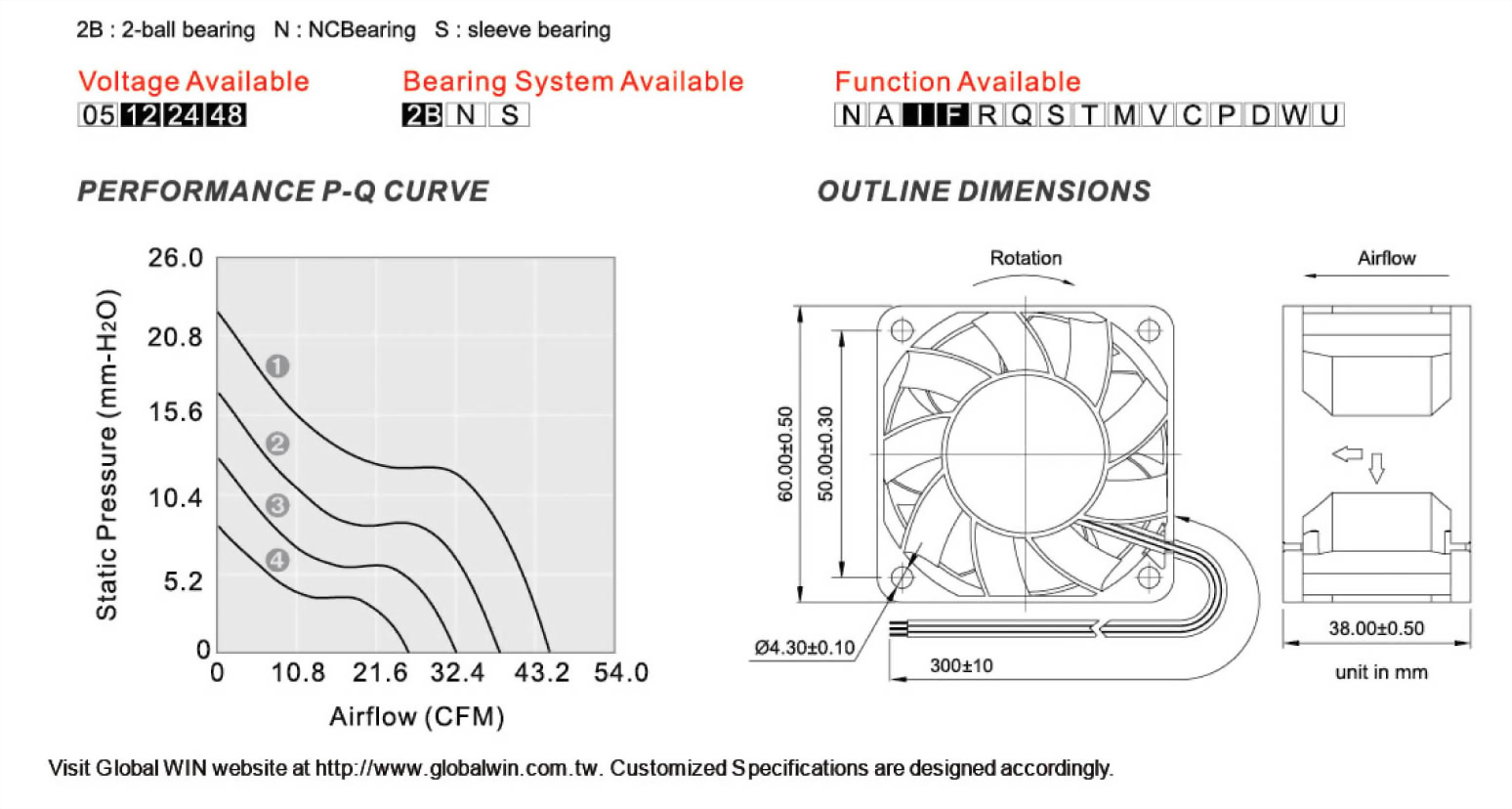

Model No.	Bearing	Rated Voltage /VCD	Operating Rated Voltage/VCD	Speed/RPM	Max.Airflow/CFM	Max.Static Pressure/mm-H 2O	Current/mA	Power Consumption/W	Life at 40oC L10/Hour	P-Q Curve	Noise Level/dB(A)
GW603812LB-P	2B	12	7~13.2	4500	26.7	8.1	190	2.28	80000	4	41.0
GW603812MB-P	2B	12	7~13.2	5500	32.6	12.2	260	3.12	80000	3	47.0
GW603812HB-P	2B	12	7~13.2	6500	38.5	16.5	450	5.40	75000	2	51.0
GW603812EB-P	2B	12	7~13.2	7500	45.5	22.9	720	8.64	65000	1	55.0
GW603824LB-P	2B	24	12~26.4	4500	26.7	8.1	110	2.64	80000	4	41.0
GW603824MB-P	2B	24	12~26.4	5500	32.6	12.2	170	4.08	80000	3	47.0
GW603824HB-P	2B	24	12~26.4	6500	38.5	16.5	250	6.00	75000	2	51.0
GW603824EB-P	2B	24	12~26.4	7500	45.5	22.9	360	8.64	65000	1	55.0
GW603848LB-P	2B	48	24~56.0	4500	26.7	8.1	70	3.36	80000	4	41.0
GW603848MB-P	2B	48	24~56.0	5500	32.6	12.2	90	4.32	80000	3	47.0
GW603848HB-P	2B	48	24~56.0	6500	38.5	16.5	130	6.24	75000	2	51.0
GW603848EB-P	2B	48	24~56.0	7500	45.5	22.9	190	9.12	65000	1	55.0
