• DC 60X60X25mm

DC 60X60X25mm

Airflow: 15.8-40.1 CFM
Static Pressure: 2.4~14.2 mm-H20
Blade / Housing:
Plastic Material UL 94V-0 P.B.T.
Lead Wire: UL1007#24AWG
Weight: 56 g

Specifications Specifications are subject to change without notice

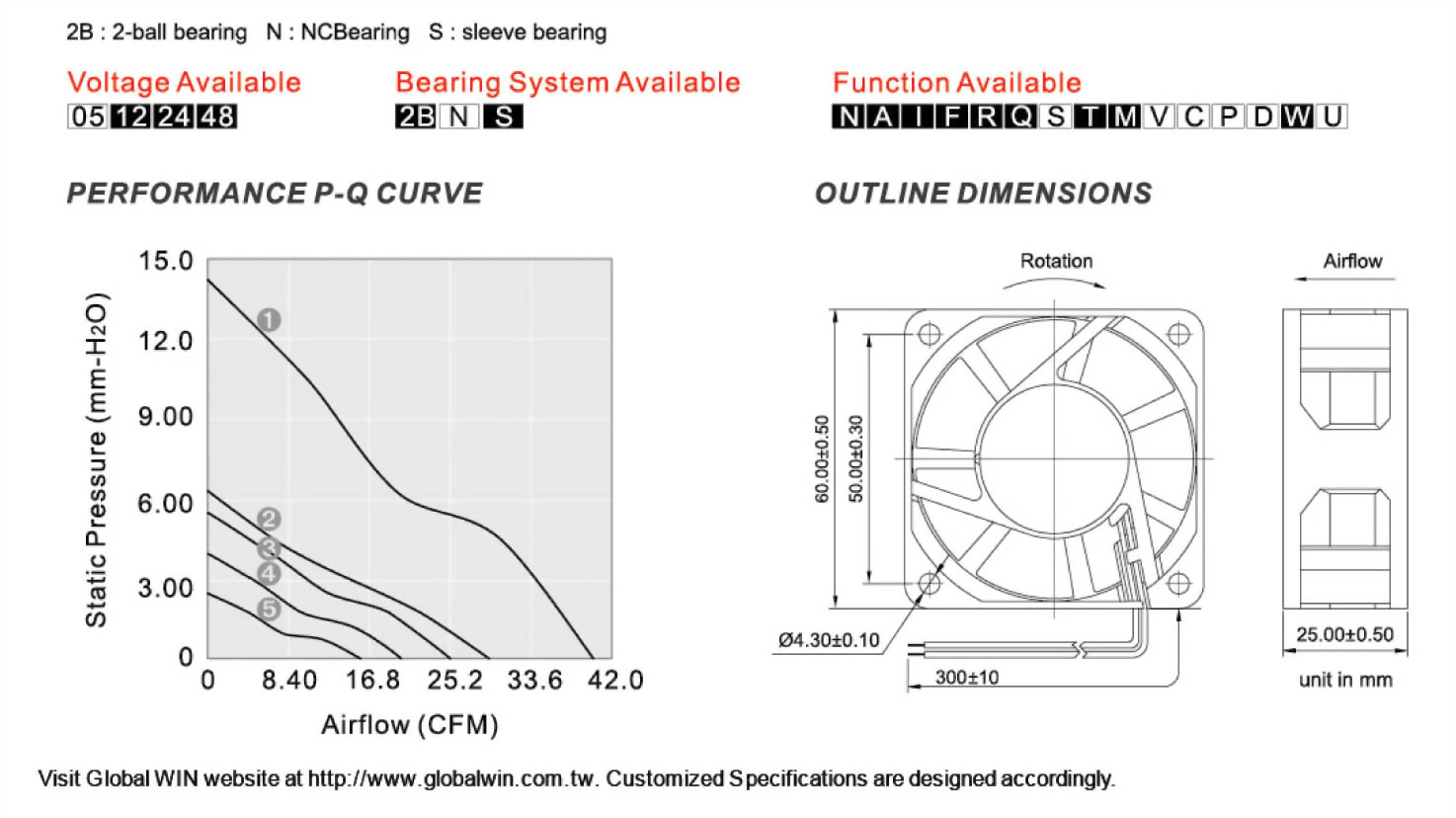

Model No. Bearing Rated Voltage /VCD Operating Rated Voltage/VCD Speed/RPM Max.Airflow/CFM Max.Static Pressure/mm-H 2O Current/mA Power Consumption/W Life at 40oC L10/Hour P-Q Curve Noise Level/dB(A)
GW602512LB 2B 12 7~13.2 2800 15.8 2.4 80 0.96 80000 5 23.5
GW602512MB 2B 12 7~13.2 3700 20.0 3.8 120 1.44 80000 4 29.5
GW602512HB 2B 12 7~13.2 4300 25.4 5.5 150 1.80 75000 3 34.0
GW602512EB 2B 12 7~13.2 5200 29.3 6.3 210 2.52 65000 2 40.5
GW602512EB 2B 12 7~13.2 6800 40.1 14.2 330 3.96 65000 1 48.0
GW602524LB 2B 24 12~26.4 2800 15.8 2.4 50 1.20 80000 5 23.5
GW602524MB 2B 24 12~26.4 3700 20.0 3.8 70 1.68 80000 4 29.5
GW602524HB 2B 24 12~26.4 4300 25.4 5.5 90 2.16 75000 3 34.0
GW602524EB 2B 24 12~26.4 5200 29.3 6.3 110 2.64 65000 2 40.5
GW602524EB 2B 24 12~26.4 6800 40.1 14.2 210 5.04 65000 1 48.0
GW602548LB 2B 48 24~56.0 2800 15.8 2.4 30 1.44 80000 5 23.5
GW602548MB 2B 48 24~56.0 3700 20.0 3.8 45 2.16 80000 4 29.5
GW602548HB 2B 48 24~56.0 4300 25.4 5.5 50 2.40 75000 3 34.0
GW602548EB 2B 48 24~56.0 5200 29.3 6.3 80 3.84 65000 2 40.5
