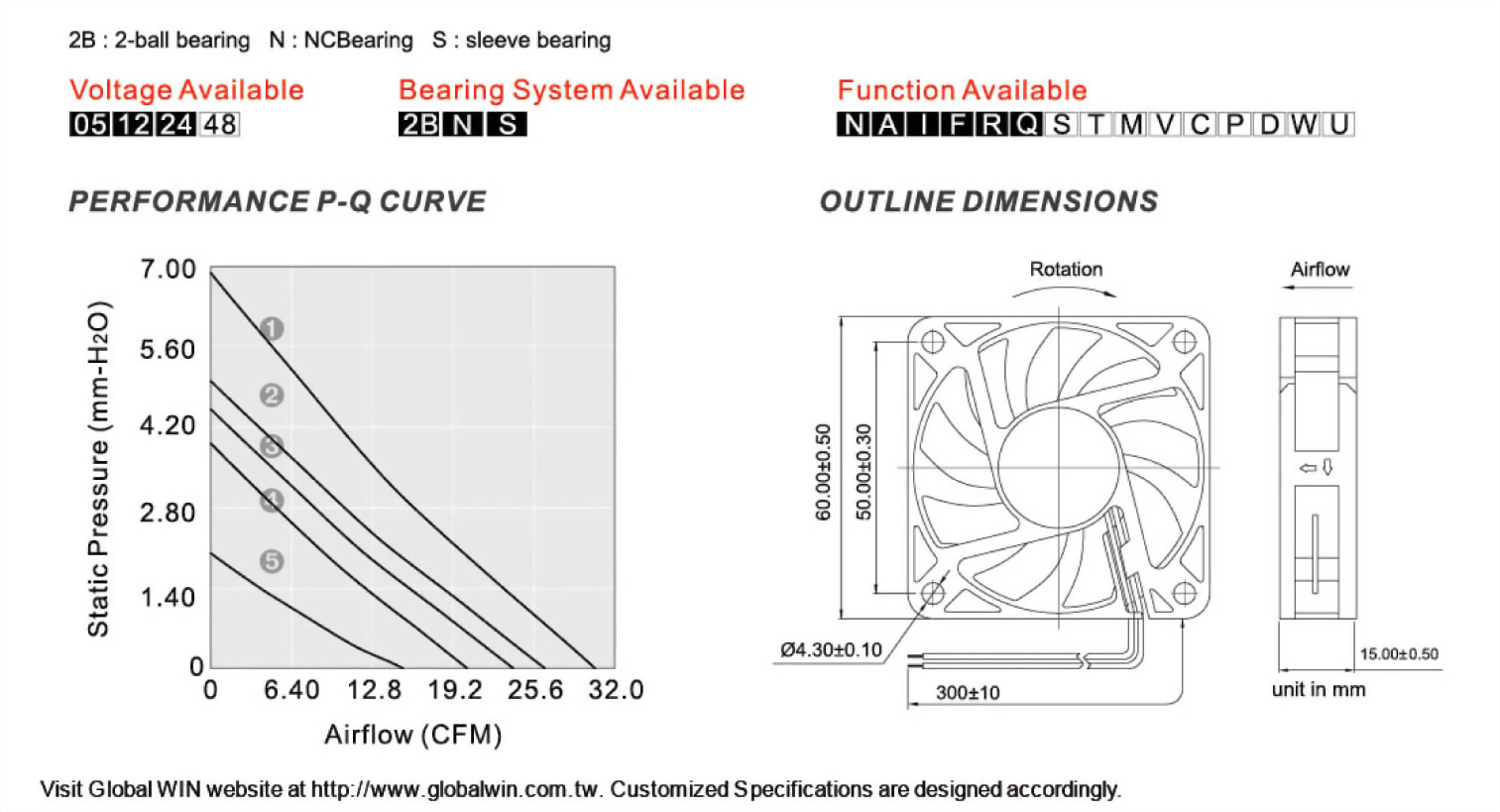

DC Fan 60X60X15mm
Airflow: 17.1~31.3CFM
Static Pressure: 2.0-5.3 mm-H20
Blade / Housing:
Plastic Material UL 94V-0 P.B.T.
Lead Wire: UL1007#26AWG
Weight: 26.0 g
Static Pressure: 2.0-5.3 mm-H20
Blade / Housing:
Plastic Material UL 94V-0 P.B.T.
Lead Wire: UL1007#26AWG
Weight: 26.0 g
| Model No. | Bearing | Rated Voltage /VCD | Operating Rated Voltage/VCD | Speed/RPM | Max.Airflow/CFM | Max.Static Pressure/mm-H 2O | Current/mA | Power Consumption/W | Life at 40oC L10/Hour | P-Q Curve | Noise Level/dB(A) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GW601505HS | S | 05 | 4-55 | 4700 | 23.9 | 4.5 | 320 | 1.60 | 25000 | 3 | 38.0 |
| GW601512LB | 2B | 12 | 7-13.2 | 3200 | 15.2 | 2.0 | 100 | 1.20 | 80000 | 5 | 25.0 |
| GW601512MB | 2B | 12 | 7-13.2 | 4000 | 20.3 | 3.9 | 160 | 1.92 | 80000 | 4 | 34.0 |
| GW601512HB | 2B | 12 | 7-13.2 | 4700 | 23.9 | 4.5 | 220 | 2.64 | 75000 | 3 | 38.0 |
| GW601512EB | 2B | 12 | 7-13.2 | 5200 | 26.4 | 5.0 | 270 | 3.24 | 65000 | 2 | 40.0 |
| GW601512EB | 2B | 12 | 7-13.2 | 6000 | 30.4 | 6.9 | 400 | 4.80 | 65000 | 1 | 43.0 |
| GW601512LS | S | 12 | 7-13.2 | 3000 | 15.1 | 1.8 | 75 | 0.90 | 30000 | 5 | 24.0 |
| GW601524LB | 2B | 24 | 12-26.4 | 3200 | 15.2 | 2.0 | 70 | 1.68 | 80000 | 5 | 25.0 |
| GW601524MB | 2B | 24 | 12-26.4 | 4000 | 20.3 | 3.9 | 110 | 2.64 | 80000 | 4 | 34.0 |
| GW601524HB | 2B | 24 | 12-26.4 | 4700 | 23.9 | 4.5 | 145 | 3.48 | 75000 | 3 | 38.0 |
 |
