• DC 60X60X10mm

DC 60X60X10mm

Airflow: 17.3-23.3 CFM
Static Pressure: 2.1-4.0 mm-H20
Blade / Housing:
Plastic Material UL94V-0 P.B.T.
Lead Wire: UL1007 #26AWG
Weight: 26.0 g

Specifications Specifications are subject to change without notice

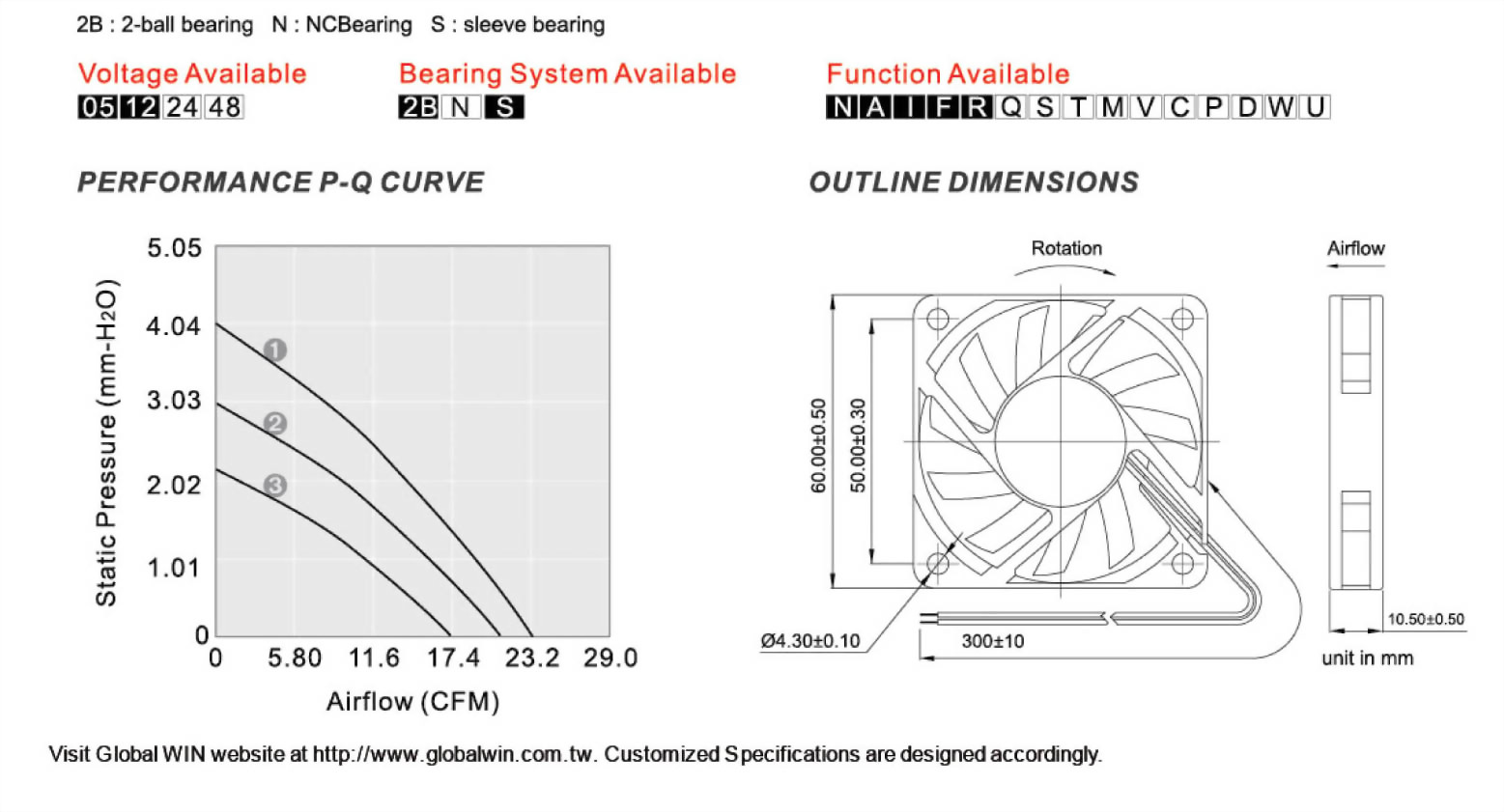

Model No. Bearing Rated Voltage /VCD Operating Rated Voltage/VCD Speed/RPM Max.Airflow/CFM Max.Static Pressure/mm-H 2O Current/mA Power Consumption/W Life at 40oC L10/Hour P-Q Curve Noise Level/dB(A)
GW601005LB 2B 05 4-5.5 3800 17.3 2.1 260 1.30 80000 3 33.0
GW601012LS S 12 7-13.2 3800 17.3 2.1 140 1.68 30000 3 37.5
GW601012MS S 12 7-13.2 4500 21.0 3.0 170 2.04 30000 2 38.0
GW601012HS S 12 7-13.2 5200 23.3 4.0 240 2.88 25000 1 41.0
GW601012LB 2B 12 7-13.2 3800 17.3 2.1 140 1.68 80000 3 33.0
GW601012MB 2B 12 7-13.2 4500 21.0 3.0 170 2.04 80000 2 38.0
GW601012HB 2B 12 7-13.2 5200 23.3 4.0 240 2.88 75000 1 41.0
