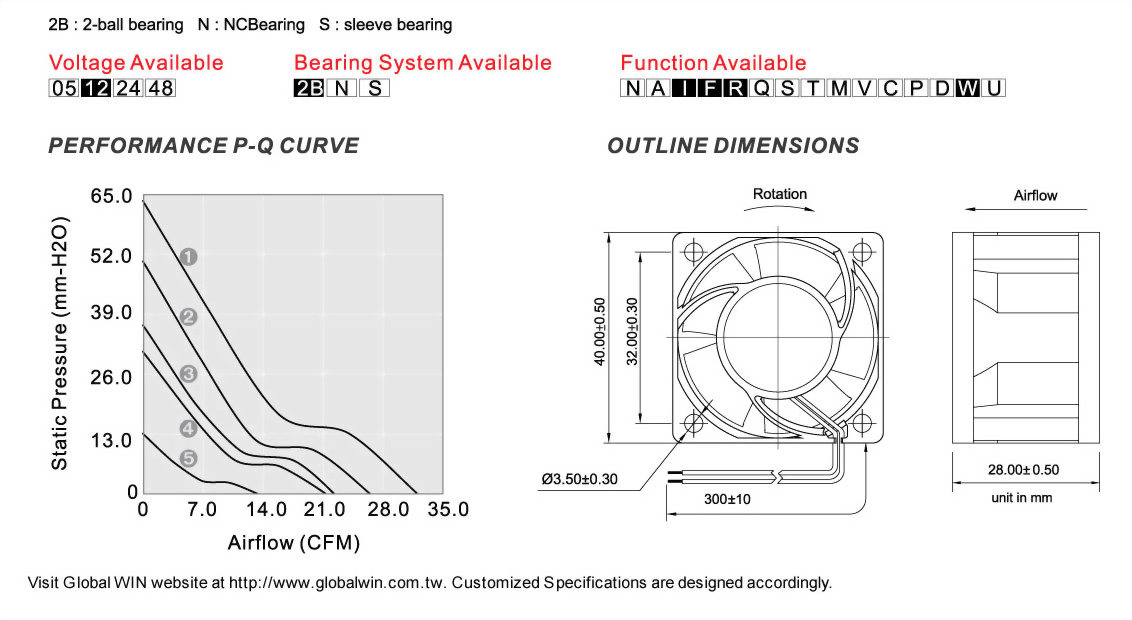

DC Fan 40X40X28mm
Airflow: 13.3-31.9 CFM
Static Pressure: 12.9-63.4 mm-H2O
Blade / Housing:
Plastic Material UL 94V-0 P.B.T.
Lead Wire: UI1571 #26 AWG
Weight: 47.1 g
Static Pressure: 12.9-63.4 mm-H2O
Blade / Housing:
Plastic Material UL 94V-0 P.B.T.
Lead Wire: UI1571 #26 AWG
Weight: 47.1 g
| Model No. | Bearing | Rated Voltage /VCD | Operating Rated Voltage/VCD | Speed/RPM | Max.Airflow/CFM | Max.Static Pressure/mm-H 2O | Current/mA | Power Consumption/W | Life at 40oC L10/Hour | P-Q Curve | Noise Level/dB(A) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GW402812LB-S | 2B | 12 | 7~13.2 | 9000 | 13.3 | 12.9 | 220 | 1.80 | 60000 | 5 | 36.6 |
| GW402812MB-S | 2B | 12 | 7~13.2 | 13500 | 21.3 | 30.8 | 440 | 4.80 | 60000 | 4 | 48.7 |
| GW402812HB-S | 2B | 12 | 7~13.2 | 16000 | 23.4 | 36.6 | 620 | 8.16 | 60000 | 3 | 52.4 |
| GW402812EB-S | 2B | 12 | 7~13.2 | 18000 | 26.5 | 50.2 | 850 | 10.20 | 60000 | 2 | 55.6 |
| GW402812EB-S | 2B | 12 | 7~13.2 | 20000 | 31.9 | 63.4 | 1100 | 13.20 | 60000 | 1 | 58.6 |
 |
