• DC 40X40X10mm

DC 40X40X10mm

Airflow: 4.5~8.1 CFM
Static Pressure: 2.0~5.4 mm-H20
Blade / Housing:
Plastic Material UL 94V-0 P.B.T.
Lead Wire: UL1007#26AWG
•Weight: 15 g

Specifications Specifications are subject to change without notice

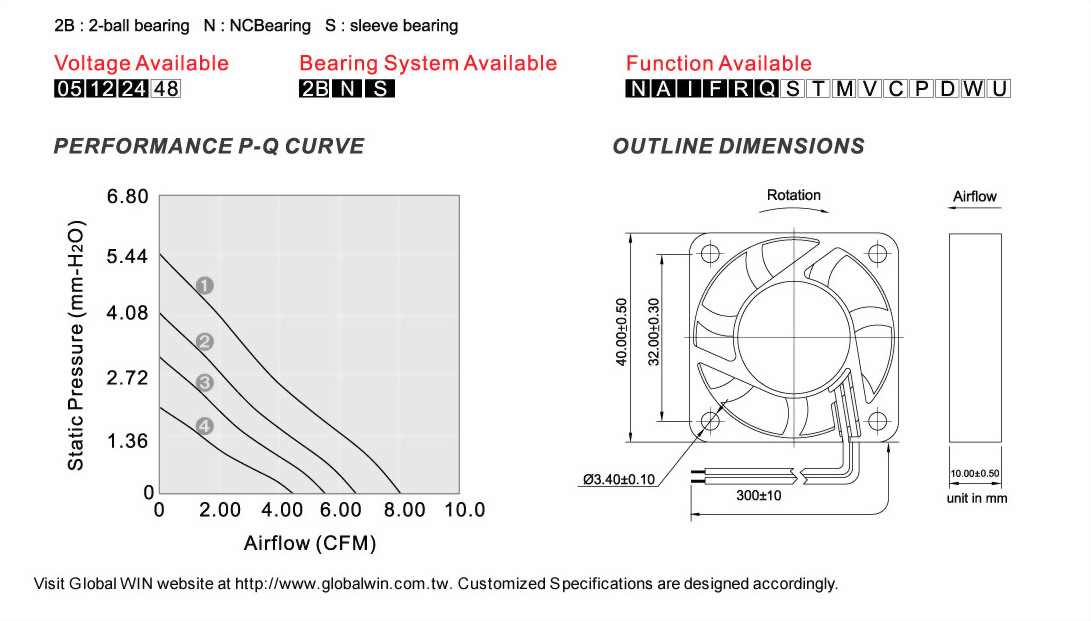

Model No. Bearing Rated Voltage /VCD Operating Rated Voltage/VCD Speed/RPM Max.Airflow/CFM Max.Static Pressure/mm-H 2O Current/mA Power Consumption/W Life at 40oC L10/Hour P-Q Curve Noise Level/dB(A)
GW401005LB 2B 05 4~5.5 4500 4.5 2.0 90 0.45 80000 4 21.5
GW401005MB 2B 05 4~5.5 5500 5.6 2.9 130 0.65 80000 3 26.5
GW401005HB 2B 05 4~5.5 6500 6.6 4.1 170 0.85 75000 2 29.0
GW401005EB 2B 05 4~5.5 7500 8.1 5.4 250 1.25 65000 1 34.5
GW401012LB 2B 12 7~13.2 4500 4.5 2.0 45 0.54 80000 4 21.5
GW401012MB 2B 12 7~13.2 5500 5.3 2.9 65 0.78 80000 3 25.0
GW401012HB 2B 12 7~13.2 6500 6.6 4.1 75 0.90 75000 2 29.0
GW401012EB 2B 12 7~13.2 7500 8.1 5.4 120 1.44 65000 1 34.5
GW401024LB 2B 24 12~26.4 4500 4.5 2.0 50 1.20 80000 4 21.5
GW401024MB 2B 24 12~26.4 5500 5.3 2.9 60 1.44 80000 3 25.0
GW401024HB 2B 24 12~26.4 6500 6.6 4.1 70 1.68 75000 2 29.0
