DC Fan 30X30X10mm
Airflow: 2.5-4.0 CFM
Static Pressure: 2.0*5.2 mm-H2O
Blade / Housing:
Plastic Material UL 94V-0 P.B.T.
Lead Wire: UL1571 #28 AWG
Weight: 9 g
Static Pressure: 2.0*5.2 mm-H2O
Blade / Housing:
Plastic Material UL 94V-0 P.B.T.
Lead Wire: UL1571 #28 AWG
Weight: 9 g

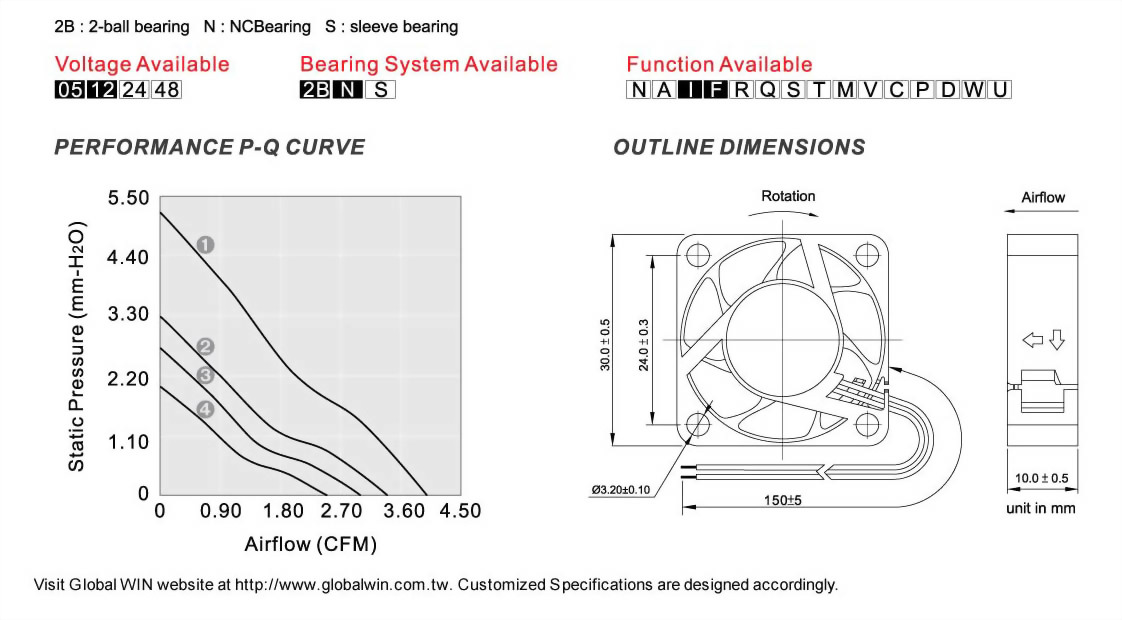

| Model No. | Bearing | Rated Voltage /VCD | Operating Rated Voltage/VCD | Speed/RPM | Max.Airflow/CFM | Max.Static Pressure/mm-H 2O | Current/mA | Power Consumption/W | Life at 40oC L10/Hour | P-Q Curve | Noise Level/dB(A) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GW301005LB-N | 2B | 05 | 4~5.5 | 5800 | 2.5 | 2.0 | 50 | 0.25 | 80000 | 4 | <17.-0 |
| GW301005MB-N | 2B | 05 | 4~5.5 | 6800 | 3.0 | 2.7 | 80 | 0.40 | 80000 | 3 | 18.0 |
| GW301005HB-N | 2B | 05 | 4~5.5 | 7800 | 3.4 | 3.3 | 90 | 0.45 | 75000 | 2 | 21.5 |
| GW301005EB-N | 2B | 05 | 4~5.5 | 10000 | 4.0 | 5.2 | 120 | 0.60 | 65000 | 1 | 28.0 |
| GW301012LB-N | 2B | 12 | 9~13.2 | 5800 | 2.5 | 2.0 | 35 | 0.42 | 80000 | 4 | <17.0 |
| GW301012MB-N | 2B | 12 | 7~13.2 | 6800 | 3.0 | 2.7 | 40 | 0.48 | 80000 | 3 | 18.0 |
| GW301012HB-N | 2B | 12 | 7~13.2 | 7800 | 3.4 | 3.3 | 40 | 0.48 | 75000 | 2 | 21.5 |
| GW301012EB-N | 2B | 12 | 7~13.2 | 10000 | 4,0 | 5.2 | 60 | 0.72 | 65000 | 1 | 28.0 |
 |
